1.4_SPUTNIK_SERIES
//date_ september 2020
//location_ university of applied sciences, leipzig
//tools_ grasshopper, python, 3d-printing
>...Sputnik Series is an ensemble of additive-manufactured free-form node concepts for the realization of individual-amorphous spatial frameworks. Every design approach focuses an individual topic that is combination with additive-manufacturing techniques results in one-of-a-kind connector. Each free-form node is based on a python-script, which next to the generation of the geometry also makes statements about the structural behaviour through Finite-Element analysis and quantitatively evaluates the printing volume and printing duration.
![](https://freight.cargo.site/t/original/i/9ffabb6e5f9573f80dea07a2be5e2d95822d4f3b929b05338bc145b9c7e16823/knot_1.jpg)
![](https://freight.cargo.site/t/original/i/4348089ced062ce9c8a90286bcf75992a46afd3eb806cfc3918b57561638b5c1/knot_2.jpg)
![](https://freight.cargo.site/t/original/i/f192be21026c08cf79973e05b43a644dddf53eda479fc972bd0b70460004b0b8/knot_3.jpg)

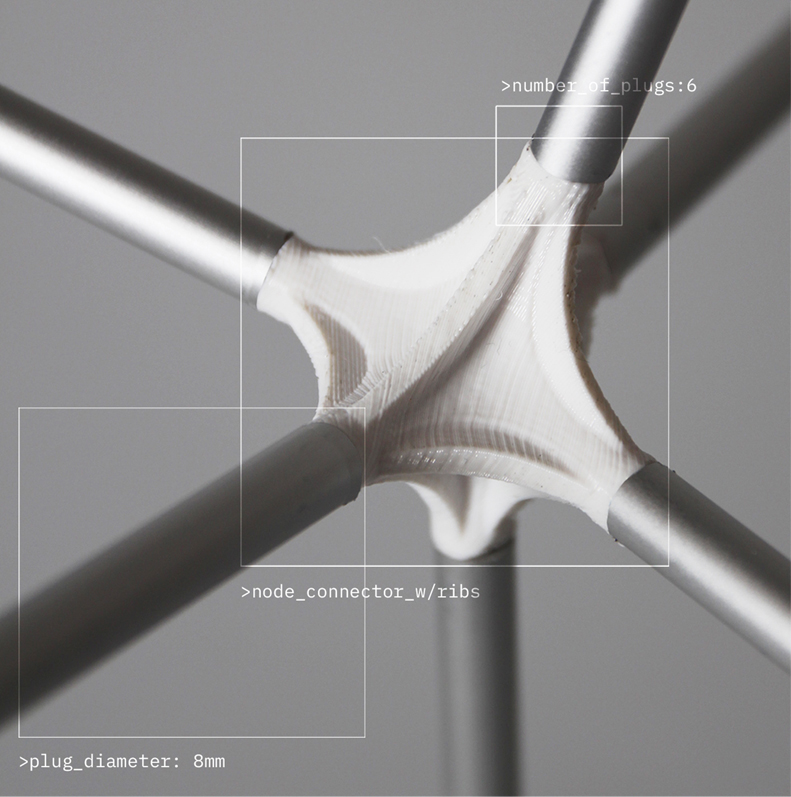

//01_structural optimization by implementing ribbing structures
//02_minimizing of the printing duration by reducing the nodes volume

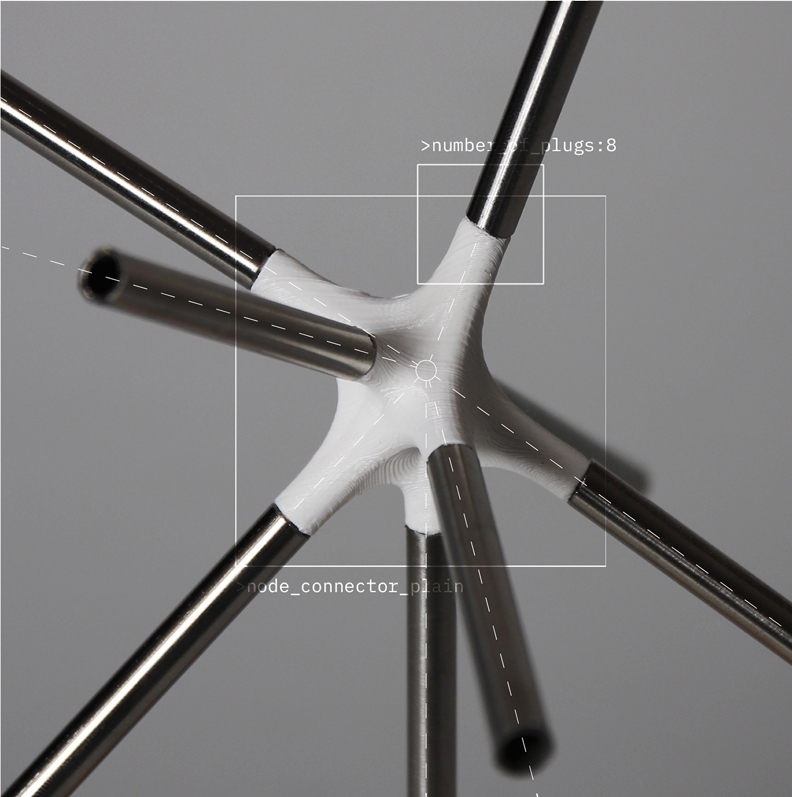

//03_formal exploration of complex structures by using computational design tools
![](https://freight.cargo.site/t/original/i/ea074f563cbd9c978183e8c20d2fc7d8711254e8082786b7cbce936f0fe9534c/knot_11.jpg)
![](https://freight.cargo.site/t/original/i/fed6e8aee4fa1aa37e6534e70a60a867b3a263bc101f49abc2973a722145c9d4/knot_22.jpg)
![](https://freight.cargo.site/t/original/i/20103ff19a511da2dfe33d5c9bd87c68c214c030f1e7fc172b70f490332c6282/knot_33.jpg)
![](https://freight.cargo.site/t/original/i/db26a5edc557458fce569be8d3f1774ddfa3532c0e33c4d89fbab1b6e55d7c1b/grafik.png)
